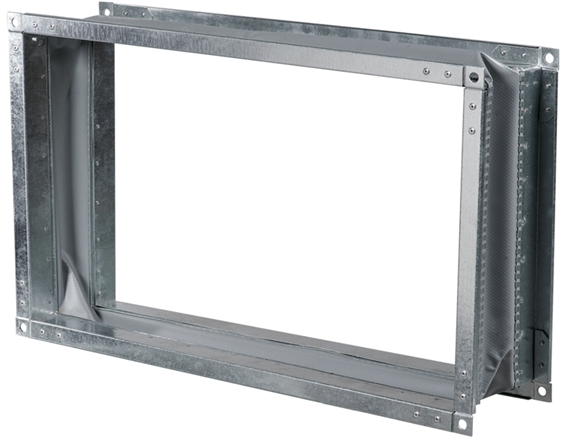

The flexible insert for rectangular duct type D-HVP is developed to absorb mechanical vibrations generated by the fan in the duct ventilation system when moving the air medium.
The construction of the flexible insert is based on a housing consisting of two flanges connected by an insulating material that ensures the tightness of the channel. The flanges of the flexible inserts are made of a special galvanized steel profile.
| Type measurement | |||
| Dimensions, mm | Weight in kg | ||
| В | Н | ||
| D-HVP-40/20 | 400 | 200 | 2,0 |
| D-HVP-50/25 | 500 | 250 | 2,5 |
| D-HVP-50/30 | 500 | 300 | 2,6 |
| D-HVP-60/30 | 600 | 300 | 2,9 |
| D-HVP-60/35 | 600 | 350 | 3,0 |
| D-HVP-70/40 | 700 | 400 | 3,5 |
| D-HVP-80/50 | 800 | 500 | 4,0 |
| D-HVP-90/50 | 900 | 500 | 3,5 |
| D-HVP-100/50 | 1000 | 500 | 5,0 |
